詳細情報 |
|||
| ブランド: | ジュンソン | ロックサイズ: | 250Lx49.5Wx26.5H ((mm) |
|---|---|---|---|
| 電機子版: | 180Lx38Wx13H ((mm) | LEDは示す: | 緑色にロックし、赤く開く |
| ロックステータスセンサー: | いいえ、ノースカロライナ州、コム | 防水 IP 率: | IP67 |
| 表面温度: | ≤+20 | 動作温度: | -20~+55°C |
製品の説明
JUNSON 12-24V wide voltage, IP67 full sealed waterproof, LED indication, Lock stutas sensor feedback

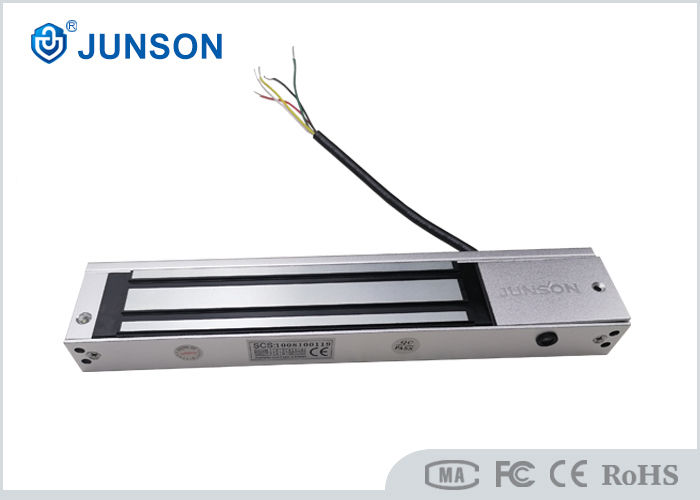

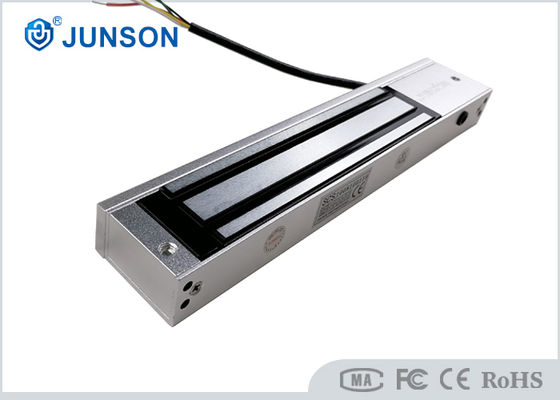

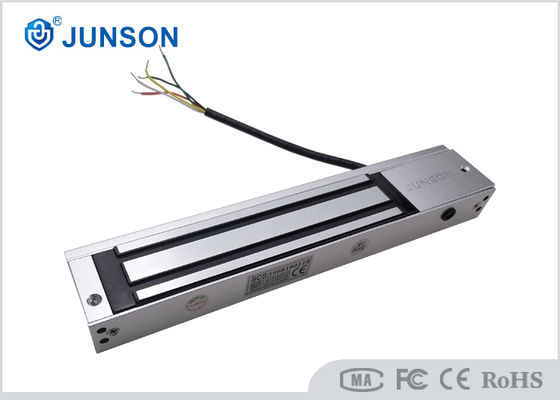

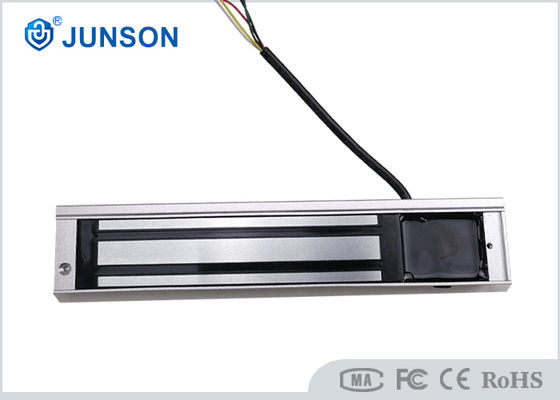

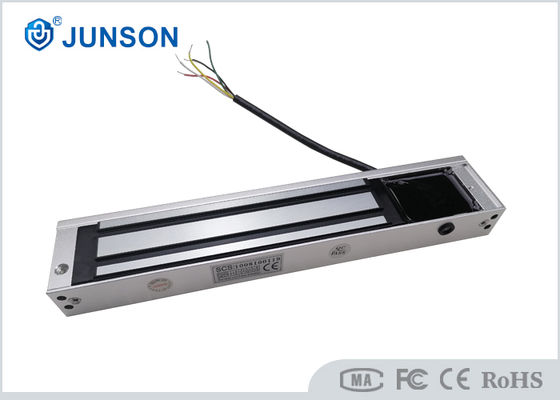

Waterproof Single Door Magnetic Lock
Specification:
Lock Size: 250Lx49.5Wx26.5H(mm),
Armature plate: 180Lx38Wx13H(mm)
Holding Force: 280kg(600Lbs)
Voltage: 12 ~24VDC, auto adjustment
Materials: Fine copper coil + aluminum housing
Current Draw: 12V/480mA 24V/240mA
Available Bracket: JS-28U, JS-28L. JS-28ZL
LED indicate: Green to lock, Red to open
Lock status sensor: NO, NC, Com
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Waterproof IP Rate: IP67
Surface Temp: ≤+20
Operating Temp: -20~+55°C
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2kg,
Standard Packing: 10PCS
Standard carton dimension:350Lx290Wx160H(mm)
Have CE, ROHS,FCC, MA certification
The Electromagnetic Locks are totally sealed in an epoxy filled Alumnium case for water-resistant and vandal resistant purpose. A threaded conduit fitting ensures weather resistant protection of the wiring therefore it is ideal for indoor and outdoor applications, even in severe weather. We offers up to 600 pounds holding force with 12V -24V DC adapter voltage power input, it is the best choice for electronic security industry and system .
