Plastic Password & RFID 125khz Door Access Control RFID Reader
商品の詳細:
| Place of Origin: | China |
| ブランド名: | Junson |
| 証明: | CE/FCC |
| Model Number: | JS-A103 |
お支払配送条件:
| Minimum Order Quantity: | 5pcs |
|---|---|
| 価格: | 交渉可能 |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
詳細情報 |
|||
| ブランド名: | Junson | Frequency: | 125 kHz |
|---|---|---|---|
| Size: | 86x86x18(mm) | Color: | Black |
| Inductive distance: | 3-15CM | Card reading type: | lD / IC |
| Output Format: | 26bits wiegand/RS485 | ||
製品の説明

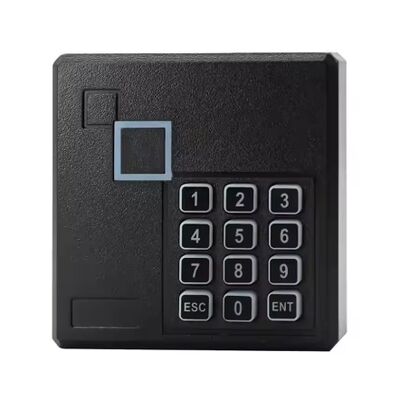

Plastic Password & RFID 125khz Door Access Control RFID Reader
IC or ID RFID Card Reader
Model: JS-A103
JS-A103 is a 125kHz non-contact Wigan ID card reader.Can support ID cards or IC cards.
It has high receiving sensitivity, low working current, single DC power supply, low price and high performance. Dustproof,moisture-proof, fully sealed design, convenient for users to install in outdoor and other harsh conditions, no mechanical wear and tear, durable.
Specifications:
| Size | 86×86×18(mm) |
| Operation voltage | 9-24V DC |
| Standby current | <100mA |
| Frequency | 125Khz / 13.56mHz; ID/IC |
| Read Range | 3-15cm |
| Output format | 26bits wiegand/RS485 |
| Color | Black |
| Temperature | -40°~60°C |
| Standard Packing | 30pcs |
| Cartons size | 51L * 24W * 47H (cm) |
Features:
1. Integrated LDR for Anti-Tampering Protection
2. Wiegand Output Ranging from 26 to 37 Bits
3. Controls for External LED and Buzzer
4. Supports ID Card Reading with Wiegand 26 Communication / IC (Mifare) Card Reading with Wiegand 26 Communication

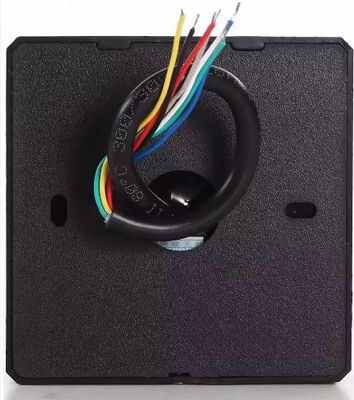

Photos:
FAQ:
1. What types of cards does the JS-A103 support?
The JS-A103 supports both ID cards and IC (Mifare) cards, making it versatile for various applications.
2. What is the Wiegand output range for this reader?
The JS-A103 provides Wiegand output options ranging from 26 to 37 bits to accommodate different systems.
3. How is the installation process for the JS-A103?
The JS-A103 is designed for easy installation. Please refer to the user manual for detailed instructions and wiring diagrams.
4. Is the JS-A103 compatible with third-party access control systems?
Yes, the JS-A103 is compatible with most access control systems that utilize Wiegand communication protocols.
5. What are the operating conditions for the JS-A103?
The JS-A103 operates effectively in a wide range of temperatures. For specific environmental conditions, please refer to the technical specifications section.
6. Where can I find additional technical support?
For further assistance or inquiries, please contact our customer support team or refer to the technical documentation available on our website.
7. What is the warranty period for the JS-A103?
The JS-A103 comes with a 1 year warranty. Please check our website for warranty details and conditions.
