DC12V/24V Infrared Door Release Switch with Adjustable Sensitive Distance and PC Case + ABS Face Plate for Touchless Exit Solution
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Junson |
| 証明: | CE/FCC |
| モデル番号: | JS-H86PB |
お支払配送条件:
| 最小注文数量: | 5個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンに梱包; 100 個/52*43*33 センチメートル/ctn |
| 受渡し時間: | 支払いを受け取ってから2〜7営業日 |
| 支払条件: | T/T,Paypal,ウェスタンユニオン |
| 供給の能力: | 5000個/月 |
|
詳細情報 |
|||
| 起源の場所: | 広東省、中国 | ブランド名: | Junson |
|---|---|---|---|
| 力: | DC12/24V | 動作湿度: | 0-95%相対湿度 |
| 出力接触: | NO/NC/COM | 敏感な距離: | 3-15cm （調節可能） |
| 材料: | PC case+ABSの面板 | 重さ: | 0.084kg |
| ハイライト: | DC12V/24V Infrared Door Release Switch,Adjustable Sensitive Distance Exit Push Button,PC Case + ABS Face Plate Touchless Exit Button |
||
製品の説明

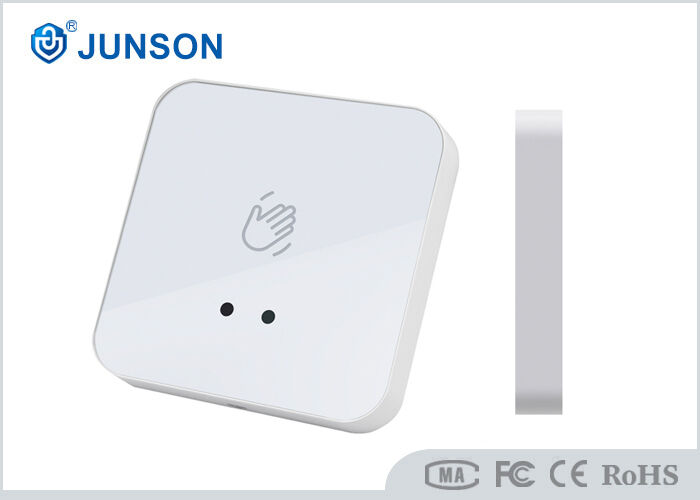

DC12V 24V Infrared Door Release Switch
Experience touchless convenience and enhanced security with our DC12V 24V Infrared Non-Touch Exit Push Button Door Release Switch. This innovative exit button features adjustable sensitive distance and dual LED indicators, providing a seamless way to release doors without physical contact. With robust construction and compatibility with both DC12V and DC24V systems, it's a reliable solution for access control in various settings.
Product Model: JS-H86PB
Technical Specifications
| Dimensions | 86L*86W*14H(mm) |
| Operating Temperature | -20°C ~ +55°C (14-131°F) |
| Power | DC12/24V |
| Operating Humidity | 0-95% (relative humidity) |
| Output Contact | NO/NC/COM |
| Sensitive Distance | 3-15cm (Adjustable) |
| Mechanical Life | 500,000 Tested |

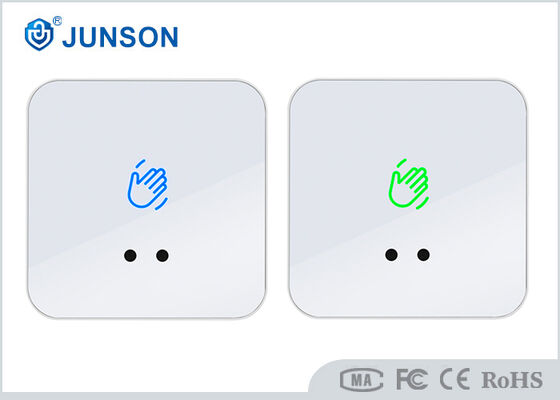

| LED Indicator | Blue LED (Standby) Green LED (Active) |
| Mounting Way | Surface Mount |
| Material | PC case + ABS face plate |
| Time Delay | 0~30s (Adjustable) |
| Weight | 0.084kg |
| Package Quantity | 100PCS/52*43*33cm/ctn |
Product Dimensions
Installation Instructions
Warranty Information
Our buttons come with a one-year warranty covering manufacturing defects and performance issues. Notify us promptly of any faults for free repair or replacement services. Warranty is void if unauthorized tampering occurs. Transportation damages should be reported upon receipt.
Frequently Asked Questions
Do you provide OEM & ODM services?
Yes, we have 15 years of experience in OEM & ODM and can accommodate various requirements.
What is the warranty period?
We offer a 1-year warranty for all electric locks, ensuring replacements for any defects.
What payment methods do you accept?
We accept T/T, Western Union, Money Gram, PayPal, and Trade Assurance, among others.
What certificates do you hold?
CE, FCC, ROHS, and other necessary certifications are in place.
What is your delivery timeframe?
Delivery times depend on order quantity, varying from a few days for samples to a few weeks for bulk orders.
